APPENDIX 2

Vintage Micron Radio Control electronic kits. 1970s/early 80s.

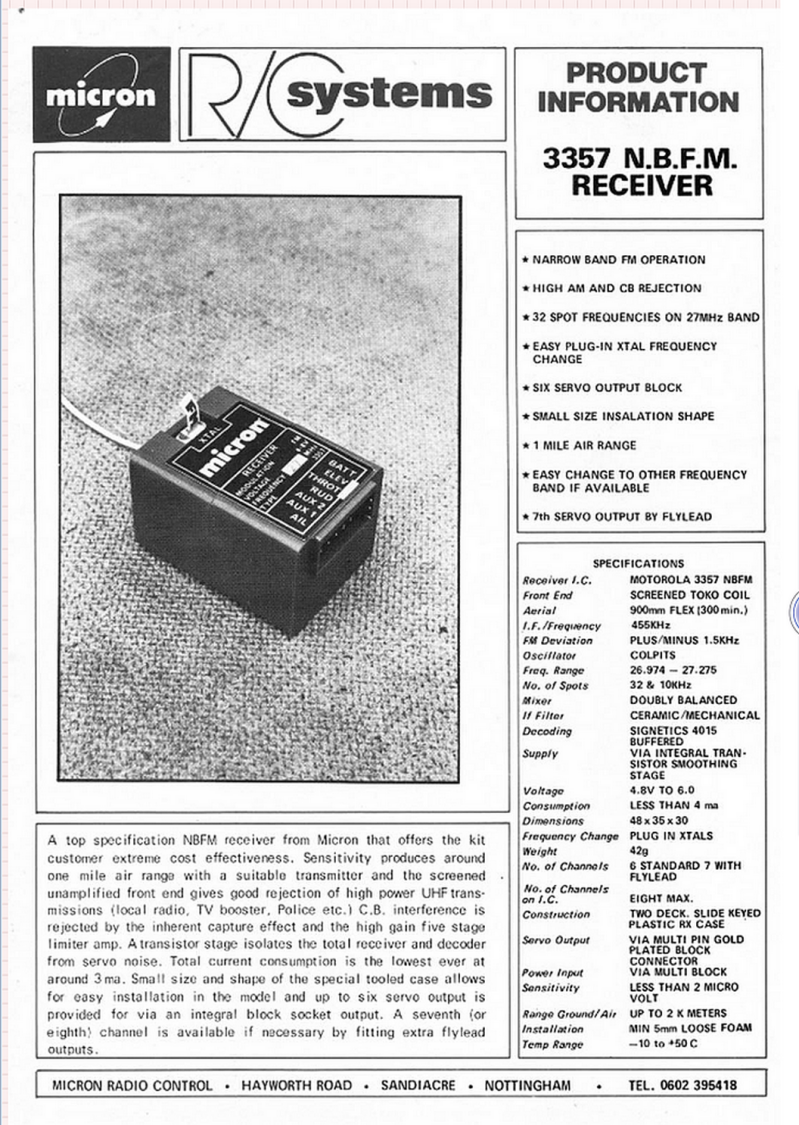

 Micron Standard 27MHz/35MHz Narrow Band Receiver from mid 1970s to early 1980s.

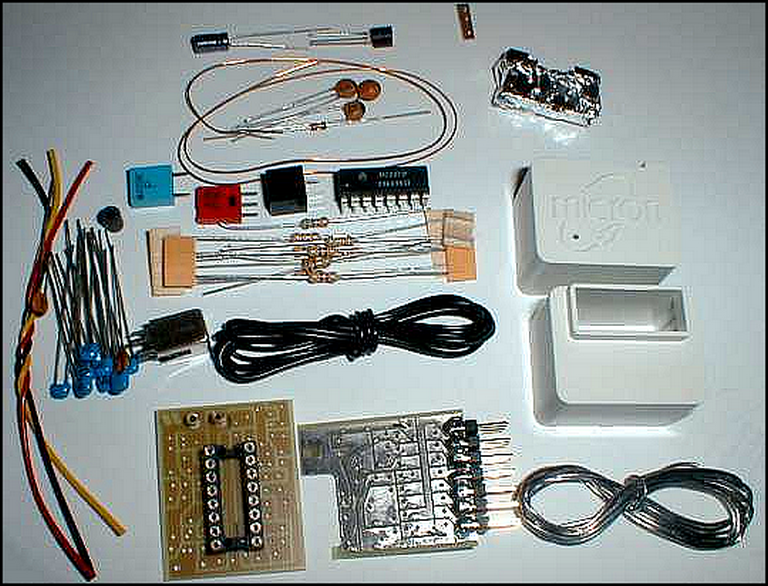

Typical Micron receiver kit of parts.

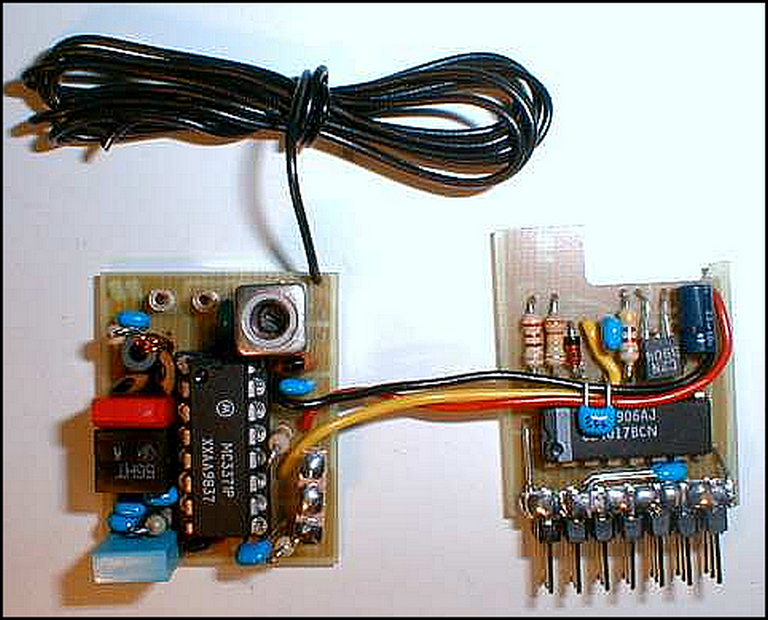

Receiver parts assembled and soldered

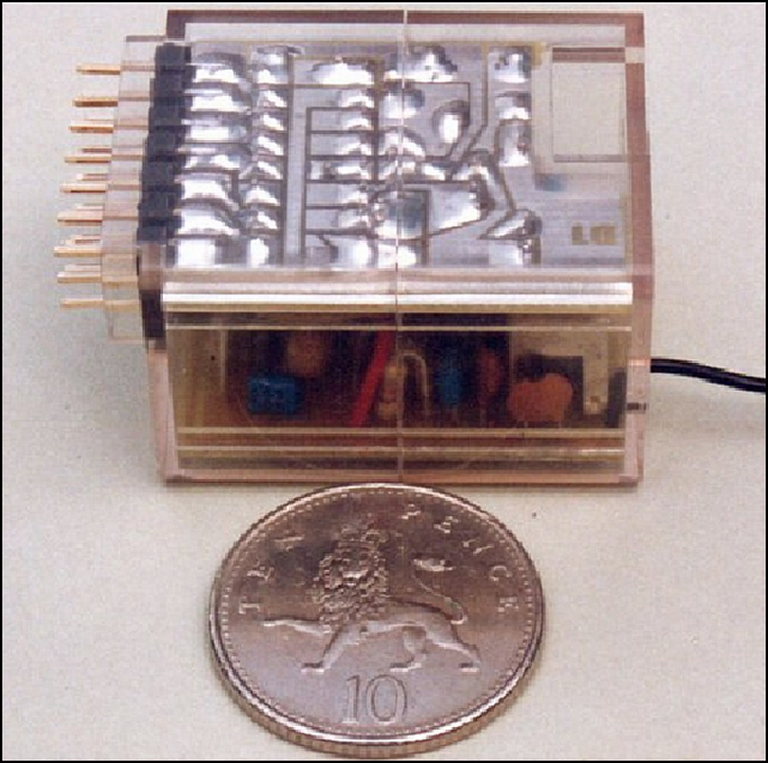

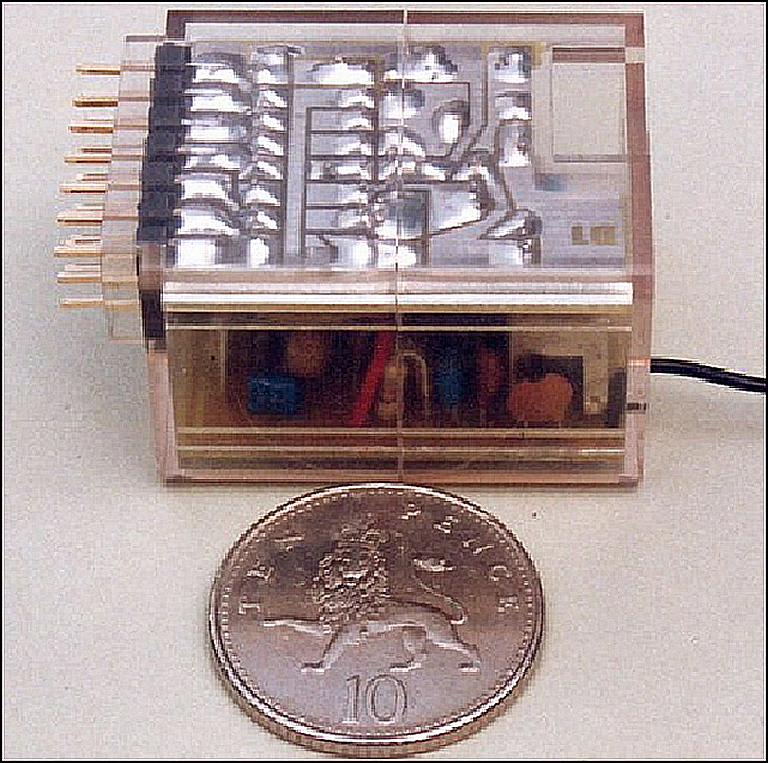

Receiver shown with clear ABS case

Big thanks to RC Soaring for use of photos.

A review of the Micron Mini receiver can also be found at Review: Micron Mini Rx by Mike Shellim.

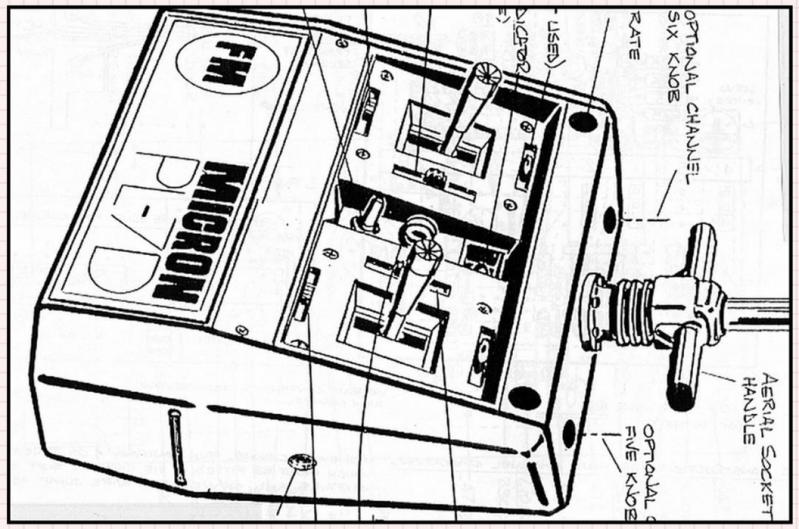

Typical mid 1970s pencil design drawings. To help with injection tool and coated aluminium folding tools. Full size Prototypes made from balsa wood and thin plastic sheet.

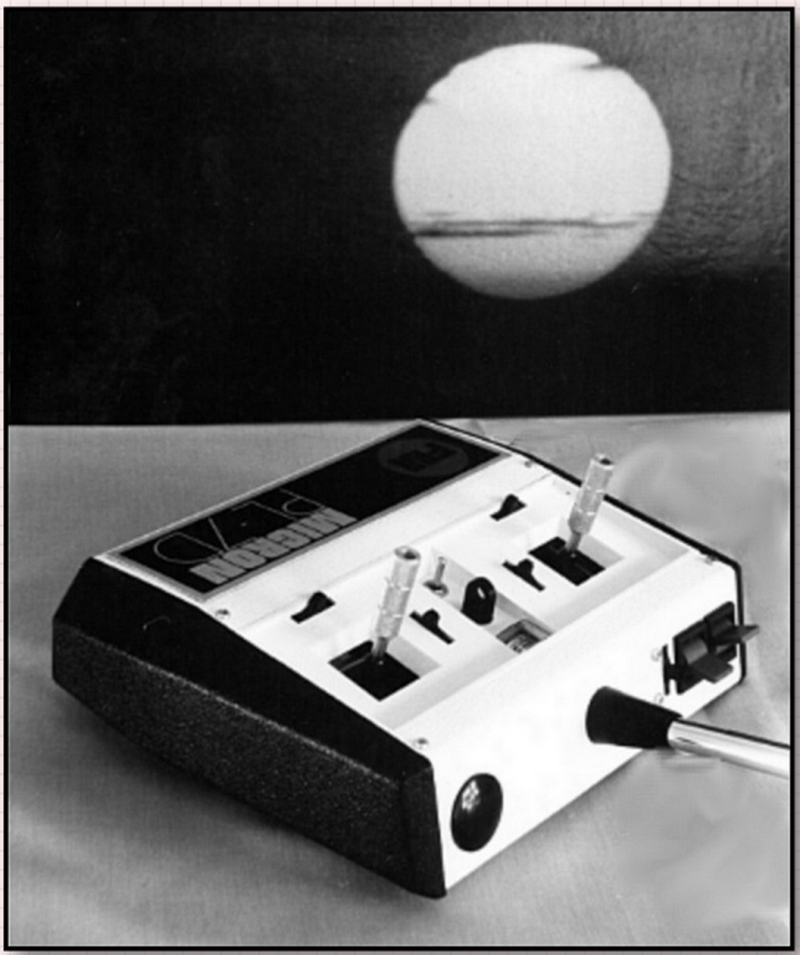

Picture of early Micron PL-7D AM and FM transmitter (electronic kit) shown with 'Mechanical in-flight trim joysticks'. 7 channels available. 1970s. Electronic in-flight trims came later.

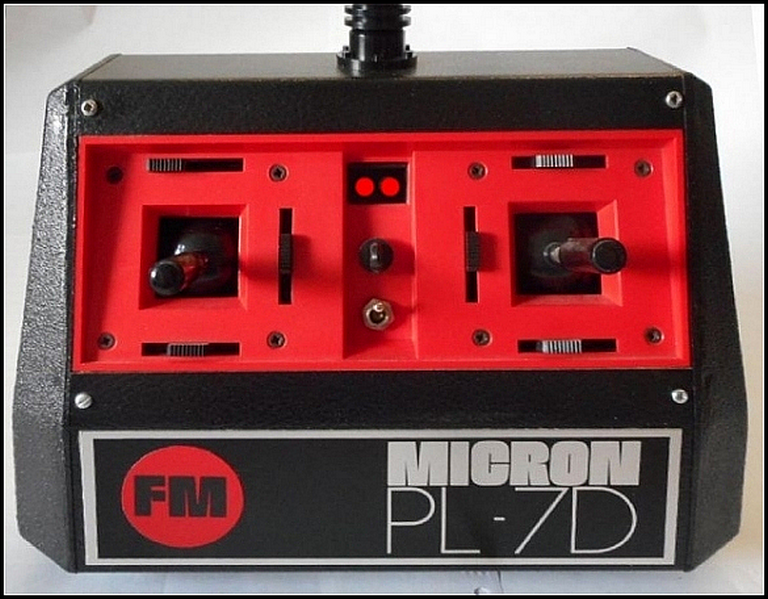

Later PL-7D 35MHz FM showing linear slider resistors for in-flight trim. Top sliders for servos five and six.

Micron Radio Control Kits sold to many countries in the 1970s/1980s.

A two valve radio control receiver (Mr Hill design) built by T T as an O Level school project in 1956.

The Beginnings of radio control Kits probably started in the 1960s with offerings similar to the 'Gallatrol Galloping Ghost' system bellow.

The Gallatrol building instructions were in the form of a 16 page booklet 7" X 5" (trade size), and pushed into the magazine, a little like the magazine in a Sunday newspaper but much smaller. A page example is shown above.

More detail of above on Appendix 4 for nostalgia !

And a picture of the Guy who put the Norcim Website pages together, 2001 to 2024.

T T  Still flyin' at 86.
